Cotton Fabric Laminates SRBF - Tufnol Carp Brand

Cotton fabric based laminate
Fine weave phenolic/cotton resin laminated plastic.

(SRBF – Synthetic Resin Bonded Fabric)

Carp Brand Tufnol is a top-quality grade of cotton fabric based laminate designed for mechanical and electromechanical applications. It is made from a premium quality fine weave cotton fabric which has been specially treated to enhance machinability and other properties.

Strong, with good wear resistance, these cotton fabric based laminate sheets have excellent machining qualities and low water absorption, with good dimensional stability. Electrical properties are excellent for this class of material. Resistance to high impact, however, is slightly less than the coarser weave grades of Tufnol phenolic cotton sheet.

Carp Brand phenolic cotton sheet is used for a wide variety of components where premium quality is required. It is often chosen for components with intricate features which need accuracy and a fine machined tolerance finish. Typical components include fine-toothed gears, cams, geneva wheels, seal retaining rings, actuating arms, insulating sleeves and bushes, components for use at cryogenic temperatures, insulation for low and medium voltages and a wide range of precision machined parts.

Application of our cotton fabric laminates - Tufnol Carp Brand

  • A top-quality grade of cotton fabric based laminate designed for mechanical and electromechanical applications.

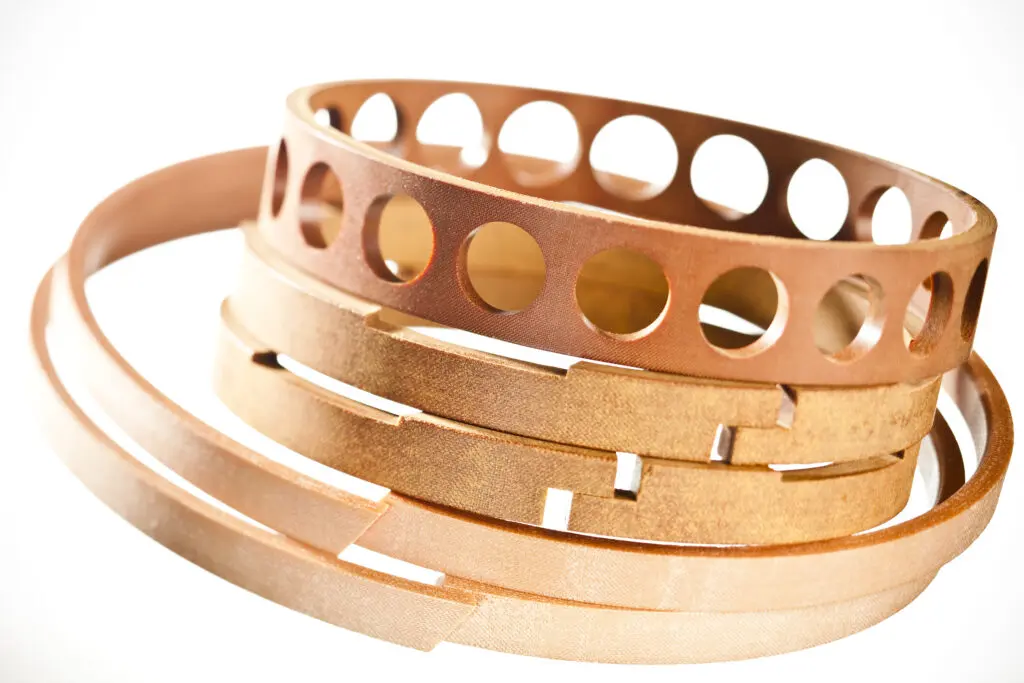

Close-up of several brown, circular metal bands with holes and slots, stacked together on a white background, shown alongside Cotton Fabric Laminates SRBF for comparison.

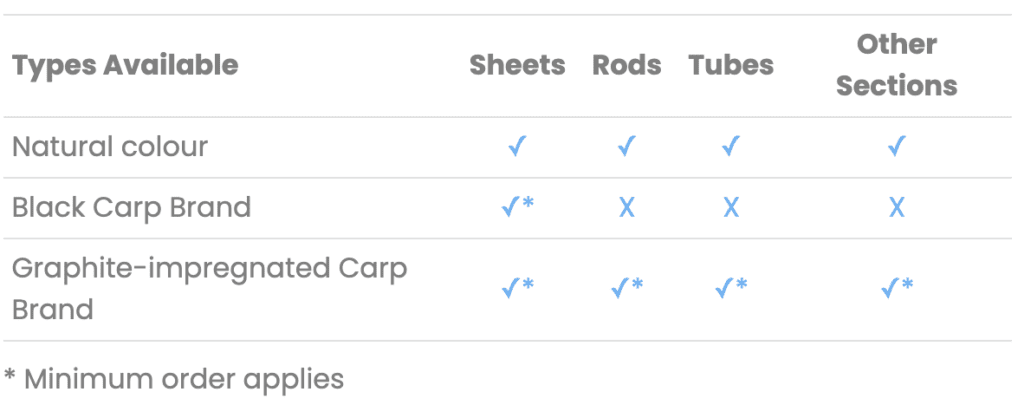

Format

Types AvailableSheetsSheet (RFS) TubesOther Sections
Natural colour✓✓✓✓
Black Carp Brand✓*XXX
Graphite-impregnated Carp Brand✓*✓*✓*✓*

* Minimum order applies

Table listing availability of sheets, rods, tubes, and other sections for three brands of materials, including Cotton Fabric Laminates SRBF.

View/Download Datasheet(s):

Blue and gray Tufnol brochure cover with white lines, geometric shapes, and a subtle nod to Cotton Fabric Laminates SRBF.
DATASHEET
A blue and grey Tufnol-branded document featuring white lines symbolizing text, with the logo in the top left corner, referencing Cotton Fabric Laminates SRBF for added material context.
SAFETY DATASHEET

Standards

  • Sheet: BS EN 60893-3-4 Type PF CC 305
  • Rod from sheet: BSEN 60893-3-4:2012 PF CC 305
  • Rectangular Bar: BS 6128 Part 4 Type PF CC 41 & 42
  • Hexagon Bar: BS 6128 Part 6 Type PF CC 61 & 62
  • Round Tube: BS EN 61212-3-2 Type PF CC 31
  • Rectangular Tube: BS 6128 Part 13 Type PF CC 131
  • NEMA Sheet: NEMA LI-1-1983 Type LE
  • DIN Round Rod and Tube: DIN 7735 TYPE Hgw 2088 & 2089

*Testing and certification to these standards is subject to special enquiry. Standard quality testing is to British Standards.
