Tufnol SRBF Material - Rolled Laminated Fabric Tubes

Cotton fabric laminate

Medium weave cotton/phenolic resin laminated plastic tubes

(SRBF – Synthetic resin Bonded Fabric)

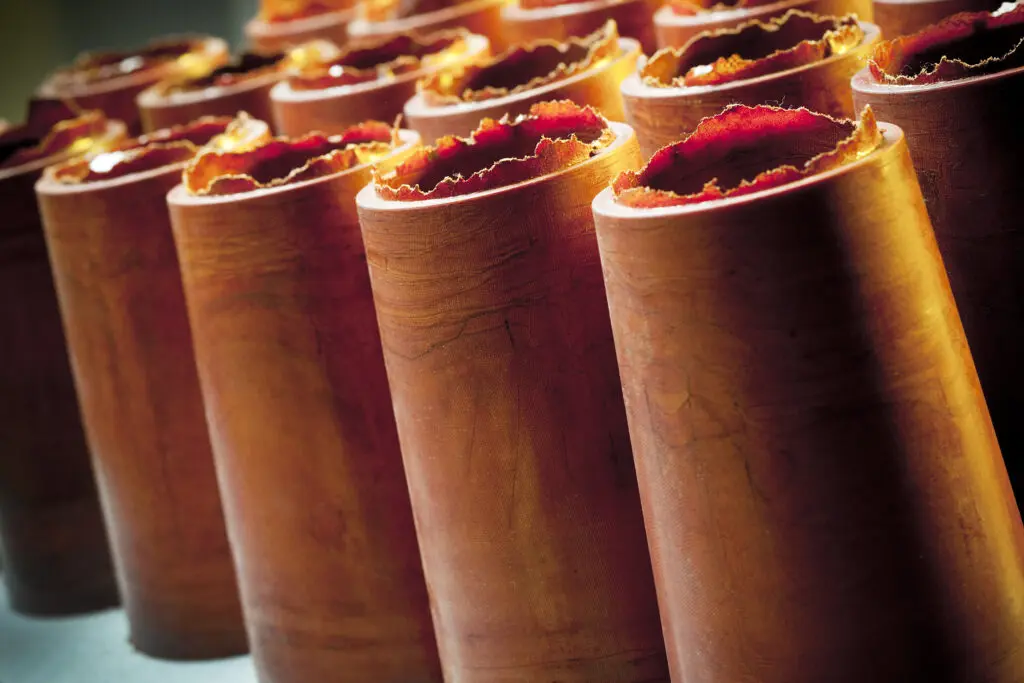

Cotton laminated fabric tubes.

Tufnol Rolled Laminated cotton fabric tubes were developed to complement the range of moulded tubes. RL tubes have good mechanical strength, low water absorption and are resistant to weathering and chemical attack by mild acids and alkalis. They are most commonly used to manufacture mechanical and wear resistance components for a wide range of engineering applications. They are strong and rigid, with good bursting strength and excellent wear resistance in lubricated applications.

Three SRBF laminate fabric grades are available:

  • Grade RL F/1 – A fine weave fabric grade with good electrical and mechanical qualities. Machines well and is suitable for finer and more intricate components
  • Grade RL F/2 – A fairly fine weave grade, developed mainly for its good mechanical strength, but suitable for low voltage electrical applications.
  • Grade RL F/3 – A medium weave grade giving improved wear resistance where surface finish and intricate machining are not required. Suitable for low voltage electrical applications.

Application of SRBF laminate
fabric tubes

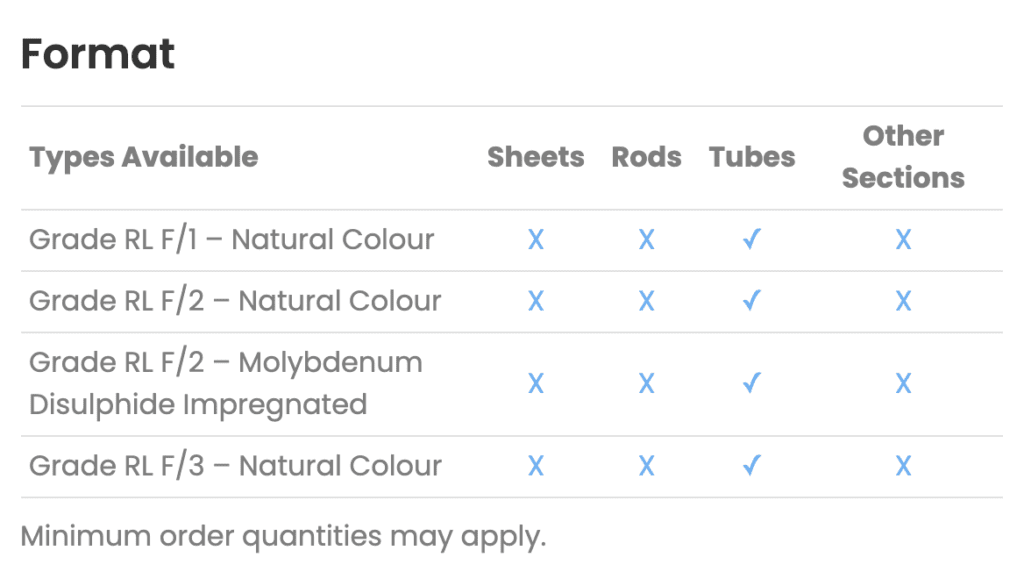

Format

Types Available Sheets Rods Tubes Other Sections
Grade RL F/1 – Natural Colour X X X
Grade RL F/2 – Natural Colour X X X
Grade RL F/2 – Molybdenum Disulphide Impregnated X X X
Grade RL F/3 – Natural Colour X X X

* Minimum order quantities may apply.
