SRBGF - Tufnol Rolled Laminated Glass Fabric Tubes
Epoxy Glass Fabric laminate
Glass fibre/epoxide resin laminated plastic tubes
(SRBGF – Synthetic Resin Bonded Glass Fabric)
Strong, rigid laminated tubes

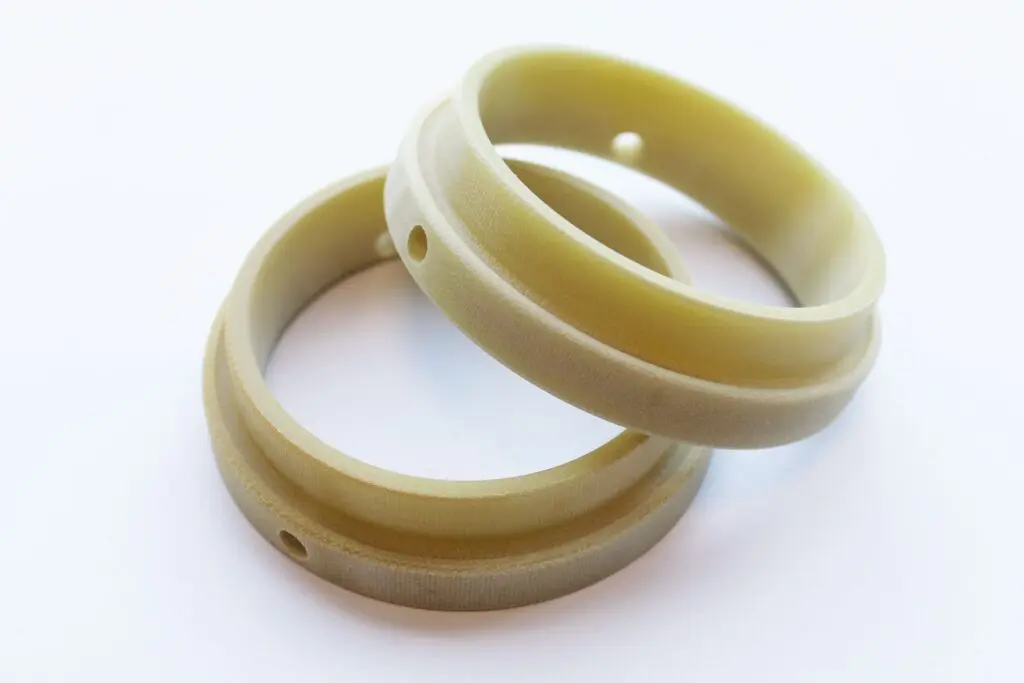

Tufnol Rolled Laminated epoxy glass fabric tubes have good mechanical strength, low water absorption and are resistant to weathering and to chemical attack by mild acids and alkalis. They are strong and rigid, with good bursting strength and excellent electrical insulation properties.
Two grades are available:
– Grade RL G/1 is a strong, rigid material, with good moisture resistance and excellent electrical insulation properties. It has good dimensional stability and is resistant to a wide range of working environments. It may be used in Class B (130ºC) electrical applications.
– Grade RL G/3 is made with an epoxy resin which is specially formulated to give improved performance at raised temperatures. It is a strong, rigid material, with good moisture resistance and excellent electrical properties. It has good dimensional stability and is resistant to a wide range of working environments. It is used in Class F (155ºC) applications.
Application
- These materials are used for many applications where strong, rigid tubes are required for the manufacture of cylindrical components for mechanical or electrical insulation uses.

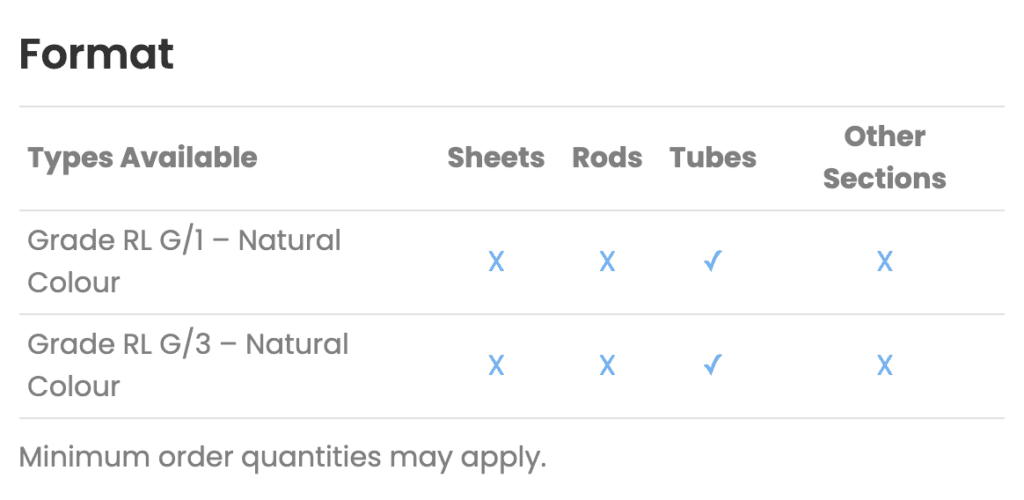

Format
| Types Available | Sheets | Rods | Tubes | Other Sections |
|---|---|---|---|---|
| Grade RL G/1 – Natural Colour | X | X | ✓ | X |
| Grade RL G/3 – Natural Colour | X | X | ✓ | X |
Minimum order quantities may apply.
View/Download Datasheet(s):
Standards
- Grade RL G/1 tube: BS EN 61212-3-1 Type EP GC 21
- Grade RL G/3 tube: BS EN 61212-3-1 Type EP GC 22
