Phenolic Paper laminate SRBP Material - Kite Brand
Phenolic Paper laminate
Paper/phenolic resin laminated plastic
(SRBP – Synthetic Resin Bonded Paper)
Kite Brand Tufnol is a first class electrical insulating materials with good dielectric strength and high insulation resistance. It has low moisture absorption and good mechanical strength, although its impact strength is lower than that of most other grades of Tufnol. Kite Brand sheet meets British Standard BS EN 60893-3-4 Type PF CP 206. It is readily machined and can be hot punched in thicknesses up to 3.2mm.
What is Kite Brand used for?
Kite Brand is the most widely used of all Tufnol phenolic paper grades, wherever a good quality general purpose electrical insulation material is required. It is used for a multitude of different applications at low, medium and high voltages, including such items as terminal boards, mounting panels, tag strips, coil formers, insulating sleeves and bushes, busbar supports, tool and instrument handles, coil supports, insulated enclosures, brush holders, insulating spacers and special purpose plugs and sockets.
Application
- First class electrical insulation

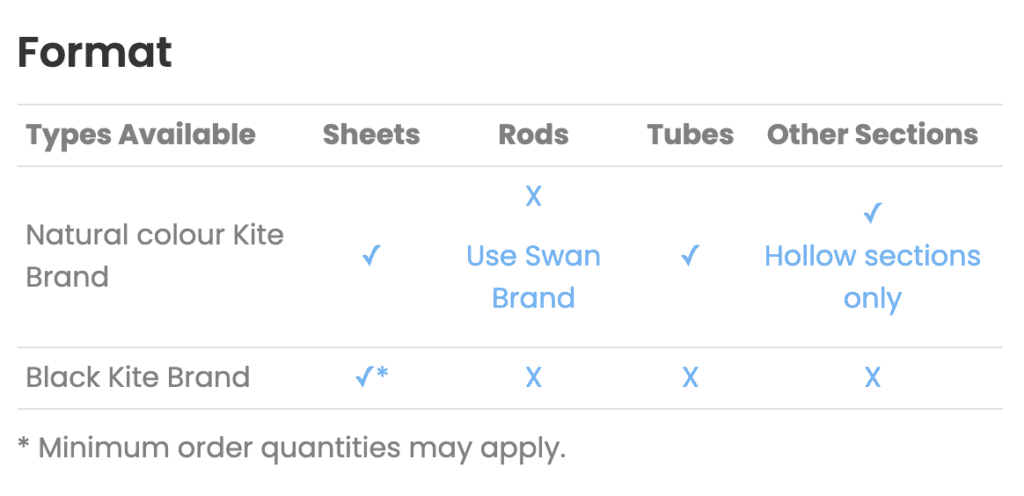

Format
| Types Available | Sheets | Sheet (RFS) | Tubes | Other Sections |
|---|---|---|---|---|
| Natural colour Kite Brand | ✓ | X Use Swan Brand | ✓ | ✓ Hollow sections only |
| Black Kite Brand | ✓* | X | X | X |
* Minimum order quantities may apply.
View/Download Datasheet(s):
Standards
- Sheet: BS EN 60893-3-4 Type PF CP 206
- Round Tube: BS EN 61212-3-2 Type PF CP 32
- Rectangular Tube: BS 6128 Part 13 Type PF CC 131
- NEMA Sheet: NEMA LI-1-1983 Type XXX
- NEMA Tube: NEMA LI-1-1983 Type XXX
- Admiralty Sheet: NES 2053
- Admiralty Tube: NES 2054
- Rod from Sheet: BS EN 60893-3-4:2012 PF CP 206
* Testing and certification to these standards is subject to special enquiry. Standard quality testing is to British Standards.
