Weights of Tufnol Laminated Sheets
Typical weight per unit thickness of standard sheet 1200 x 1200mm (48 x 48 inches) approximately.
Calculate weight in kg:
L = length in mm
W = width in mm
T = thickness in mm
G = specific gravity for grade (see above)
Weight in kg = (L x W x T x G) /1,000,000

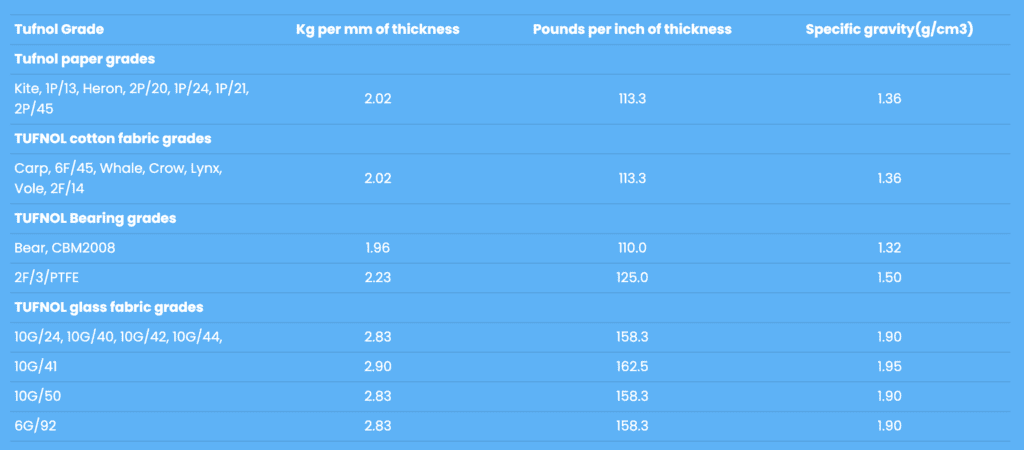

| Tufnol Grade | Kg per mm of thickness | Pounds per inch of thickness | Specific gravity(g/cm3) |
|---|---|---|---|
| Tufnol paper grades | |||
| Kite, 1P/13, Heron, 2P/20, 1P/24, 1P/21, 2P/45 | 2.02 | 113.3 | 1.36 |
| Tufnol cotton fabric grades | |||
| Carp, 6F/45, Whale, Crow, Lynx, Vole, 2F/14 | 2.02 | 113.3 | 1.36 |
| Tufnol Bearing grades | |||
| Bear, CBM2008 | 1.96 | 110.0 | 1.32 |
| 2F/3/PTFE | 2.23 | 125.0 | 1.50 |
| Tufnol glass fabric grades | |||
| 10G/24, 10G/40, 10G/42, 10G/44, | 2.83 | 158.3 | 1.90 |
| 10G/41 | 2.90 | 162.5 | 1.95 |
| 10G/50 | 2.83 | 158.3 | 1.90 |
| 6G/92 | 2.83 | 158.3 | 1.90 |
